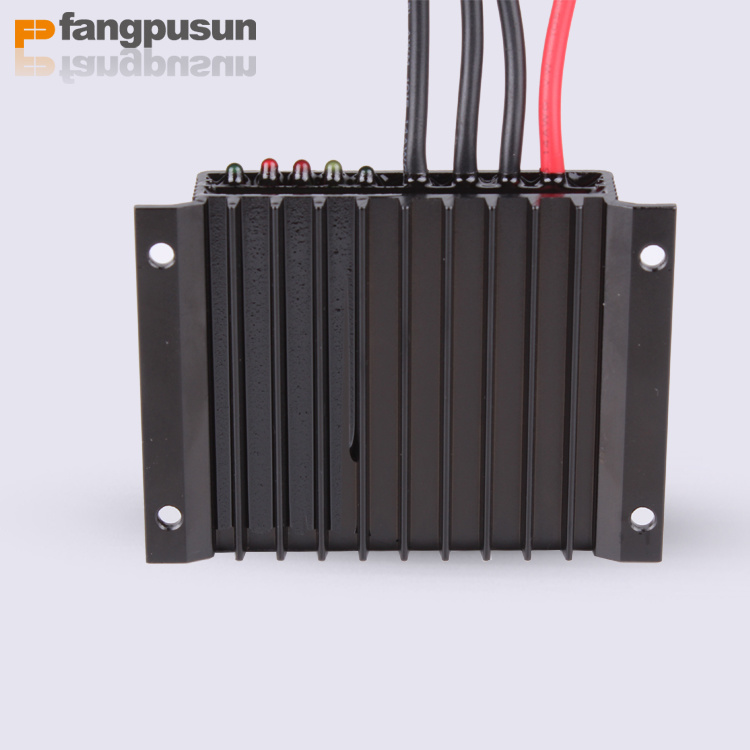

# Fangpusun Solsum 7.7e Solar Panel Street Light System 12V 24V 7A PWM Charge Controllers

这里可以自定义设置
# Fangpusun Solsum 7.7e Solar Panel Street Light System 12V 24V 7A PWM Charge Controllers
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障

Basic Info.

Model NO.
Solsum7.7E
Open Circuit Voltage Solar Module
Less Than 47V
Load Current
7A
Boost Charge Voltage
14.4V(28.8V)
Reconnection Voltage(Soc/Lvr)
More Than 50%/12.4V...12.7V(24.8V...25.4V)
Deep Discharge Protection(Soc/LVD)
Less Than 30%/11.2...11.6V(22.4V...23.2)
Degree of Protection
IP68
Dimensions
82*59*20mm
Weight
150g
Trademark
Fangpusun
Transport Package
Standard Export Carton Packing
Specification
CE, RoHs, SGS, ISO9001
Origin
Zhejiang, China
HS Code
8537109090
# Fangpusun Solsum 7.7e Solar Panel Street Light System 12V 24V 7A PWM Charge Controllers


# Fangpusun Solsum 7.7e Solar Panel Street Light System 12V 24V 7A PWM Charge Controllers


# Fangpusun Solsum 7.7e Solar Panel Street Light System 12V 24V 7A PWM Charge Controllers
# Fangpusun Solsum 7.7e Solar Panel Street Light System 12V 24V 7A PWM Charge Controllers
# Fangpusun Solsum 7.7e Solar Panel Street Light System 12V 24V 7A PWM Charge Controllers
# Fangpusun Solsum 7.7e Solar Panel Street Light System 12V 24V 7A PWM Charge Controllers
# Fangpusun Solsum 7.7e Solar Panel Street Light System 12V 24V 7A PWM Charge Controllers

 3.3E7.7E10.10E15.15E
Characterisation  of the operating performance
System voltage12V(24V)
Own consumption 4mA
DC input side
Open circuit voltage solar module 47V
Module current3A7A10A15A
DC output side
Load current3A7A10A15A
End of charge voltage13.9V(27.8V)
Boost charge voltage14.4V(28.8V)
Reconnection voltage(SOC/LVR) 50%/12.4V…12.7V
(24.8V…25.4V)
Deep discharge protection(SOC/LVD) 30%/11.2V…11.6V
(22.4V…23.2V)
Operating conditions
Ambient temperature-25ºC…+50ºC
Fitting and construction
Terminal(fine/single wire)4m /6m -AWG12/9
Degree of protectionIP 68
Dimension(X x Y x Z)82X59X20mm
WeightApprox.150g
As the product can meet various application needs, it is now widely used in the market. The control system adopts industrial chip which enables it to work stably in humid, low- and high-temperature conditions. The product has been widely recognized in the industry for its integrity. The control system adopts industrial chip which enables it to work stably in humid, low- and high-temperature conditions.
